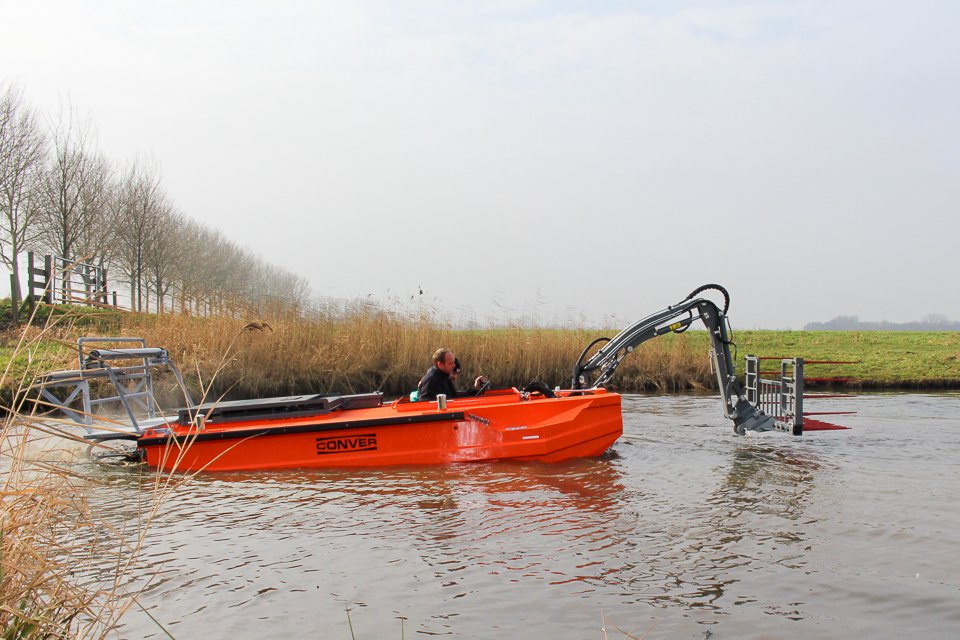

The C485-XL-F is identical to the C485-F, with the exception of the dimensions. Its larger hull (4,45 m length and 2,34 m width) ensures even more stability and lifting capacity. The hull has two watertight bulkheads and a fully lockable deck. Fitted as standard with double "F-mast" as a tool carrier which is mounted on the front on a slewing ring for a working range of approximately 330 degrees.

Equipped with a tumbler piece with quick-change coupling for quick tool (dis) assembly and suitable for universal attachment of many tools, such as our Push rake, T-mower, dredge pump or embankment cutter. Standard with load sensing and gear pumps.

The most important functions are electrically proportional to operate from the control panel which is integrated in the armrest of the multi-adjustable seat console. Equipped with a single auger for propulsion and a hydraulic laterally movable motor unit as a counter / balancing weight. On the right-hand side, the C485-XL-F can be optionally expanded with a hull-integrated side embankment mower with bottom or top drive.


Dimensions (l x w x h): 5,91 x 2,40 x 0,95 m
Weight: 2.700 - 3.250 kg (depending on execution)
Draft: ca. 0,4 m
Colour: Orange ral 2004 / grey ral 7012
Engine: Yanmar 4TNV88C, 4-cylinder 35 kW diesel, with hydraulic shift. 51 cc LS pump
Emission class: EU Stage V / U.S. Tier V
Fuel consumption: 4 - 6,5 l/h
Cooling system: Keel cooling
Electrics: 12 V
Propulsion: Single 400 mm hydraulic anti-coiling auger
Steering: Power steering with a 2 x 50° steering angle
Hydraulic system: One load-sensing pump and one gear pump with (semi-)proportional valves
Fuel tank: 80 L
Hydraulic tank: 95 l with suction- and return filter. With integrated oil cooling
Hydraulic oil: Univis N46
Maximum sailing: 7 km/h
