CR10 Tool carrier

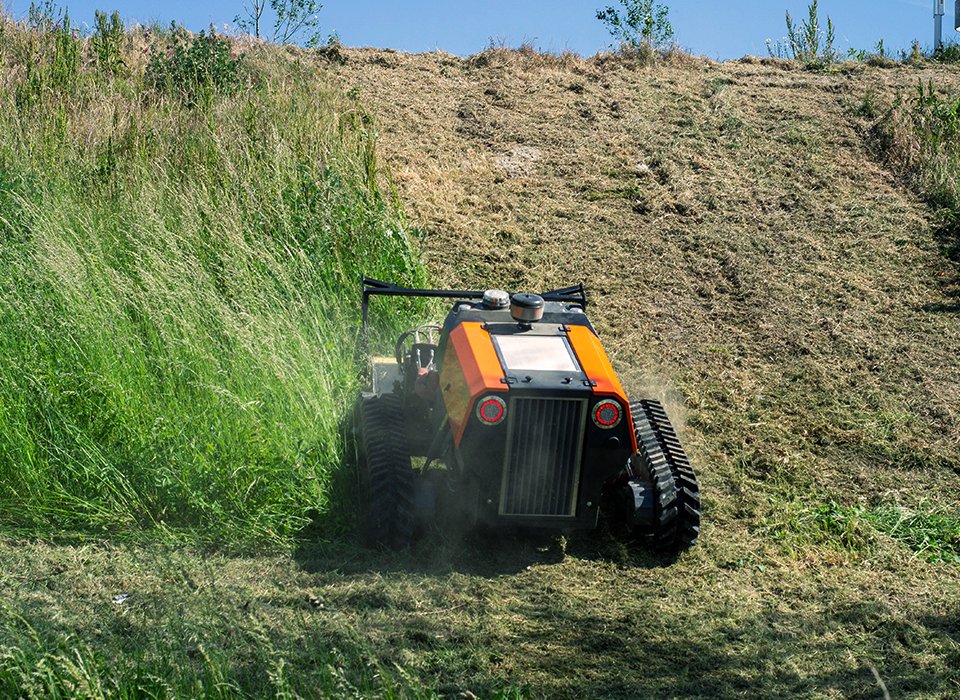

The Conver CR10 is a powerful and radio-controlled tool carrier. This multi-functional machine is designed for working in all kinds of environments from hard-to-reach places to steep-sided environments. The compact design combined with a low-centre of gravity makes this machine ideal for working in poorly accessible and sloped areas up to 55 degrees. The high-performance diesel motor with high torque ensures that you always have the power to perform to the full.

Optimal results

The CR10 is radio-controlled. This allows you to choose the position with the best view and a safe workplace place outside the danger zones. This state-of-the-art tool carrier is a versatile and powerful tool carrier which can be used in all conditions for the most diverse purposes, from mowing verges and ditches to a stump grinder. Thanks to the powerful engine, special high grip tracks and a compact and low-centre-of-gravity design is the CR10 thoroughly reliable machine.



  3-cylinder  4-cylinder
Dimensions LxBxH without implement: 2,16 x 1,38 x 1,18 m 2,16 x 1,38 x 1,18 m
Width tracks extended:  1,68 m  1,68 m
Width tracks retracted: 1.36 m 1.36 m
Lifting range tool: 30 cm to 90 cm 30 cm to 90 cm
Ground clearance:  0,20 m  0,20 m
Mass without tool):  1.300 kg 1.350 kg
Ground pressure without tool):  192 gr/cm2  192 gr/cm2
Max. mass of separate implement:  500 kg  500 kg
Diesel engine power: Hatz 40 KW/55PK  Hatz 55 kW/75PK
Emission class: Stage 3B / Tier 4 final / Stage 5 Stage 3B / Tier 4 final / Stage 5
Turning radius: 0 m/Zero-turn function 0 m/Zero-turn function
Max. driving speed: Max. 14.5 km/u Max. 14.5 km/u
Climbable slope: 55° 55°
Cooling type: Water cooled Water cooled
Fuel tank volume: 40 l 40 l
Hydraulic tank volume: 22 l 22 l
Battery type: 12 V (85 Ah) 12 V (85 Ah)
Control type: Radio control Radio control
Implement drive: Hydrostatic closed circuit Hydrostatic closed circuit
Quick release type: DPC Mounting plate DPC Mounting plate
Show more

The CR 10 tool carrier has several advantages:

  • Multifunctional tool carrier
  • Compact design
  • Max. climbing angle up to 55 °
  • Remote controlled
