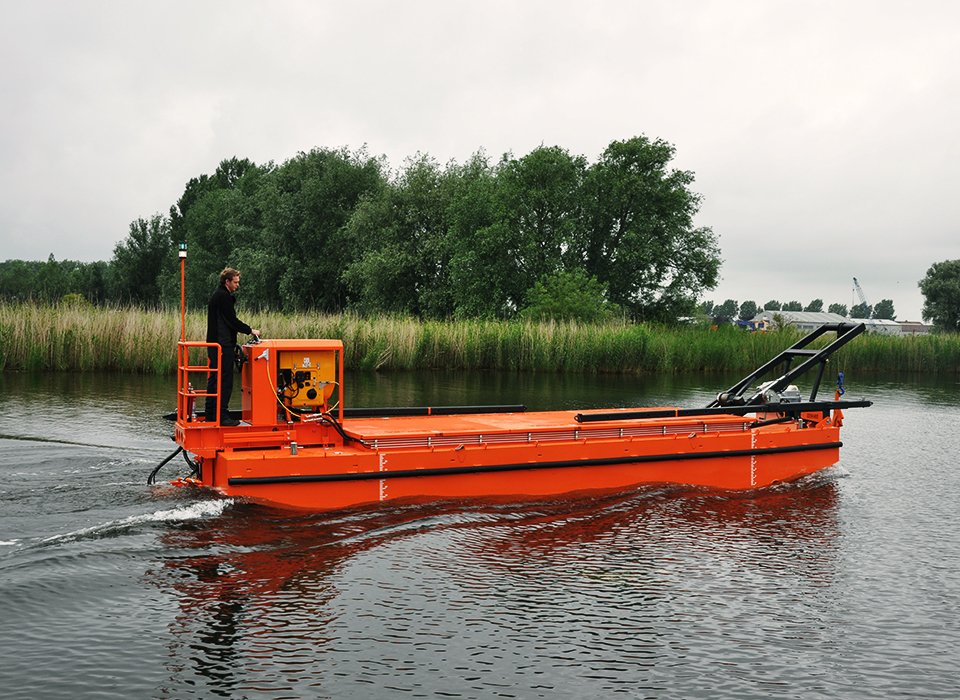

C84 barge
The C84 barge can be supplied in the volumes 6, 12 and 18 cubic meters and are made from 5 mm structural steel for the hull and 8 mm steel for the collection bin. The deck has checker plate.
The barge has sufficient framework and has 4 watertight compartments. The gangways beside the barge are 30 cm wide. A working space of 100 cm is provided at the front and the back. Each barge has 2 manholes, 4 crane hooks and 4 solid bollards.
Specifications
| CONVER C84/12 |
| Dimensions (l x w x h): | 8 x 2,5 x 1,5 m |
| Container: |
6 x 2 x 1,25 m (12m³) |
| Paint system exterior: | Sandblasted + 200µm Offshore Tar coating |
| Paint system interior: | 200µm Offshore Tar coating |
| Loading capacity: | approx. 8,3 t at 0,25 m freeboard |
| Displacement empty: | 4,7 t |
| CONVER C84/18 |
| Dimensions (l x w x h): | 8 x 3 x 1,5 m |
| Container: | 6 x 2,4 x 1,5 m (18m³) |
| Paint system exterior: | Sandblasted + 200µm Offshore Tarcoating |
| Paint system interior: | 200µm Offshore Tar coating |
| Loading capacity: | approx. 12 t at 0,25 m freeboard |
| Displacement empty: | 6 t |
Show more
The C84 barge has several advantages:
- Available in two types
- Barge made of 5mm thick steel
- Bow executed in 8mm steel
- Available in two sizes, 12m3/8,3 ton and 18m3/12 ton
- Constructed with 3 watertight compartments
